The basic technical specifications of the KS-1

The basic technical specifications of the KS-1 seismometer:

u Recording of three orthogonal ground motion components in the seismic frequency band	10^-6 - 20 Hz
u Threshold of recordable ground motion throughout the entire frequency range	within LNM
u Constancy of temperature maintained in the seismometer's inner space under ambient temperature fluctuations of ±2,5^оС	±10^-6^оС
u Mechanical screening from the effect of air pressure fluctuations
u Screening from the effects of ambient electromagnetic oscillations
u Dynamic measurement range	120 dB
u Maximum amplitude of output signal voltage	±12 V
u Power supply voltage	±15 V
u Remote control calibration and adjustment of output voltage levels.
u Power consumed: Without thermostatic control	0,05 W
With thermostatic control	3 W
u Overall dimensions	D=Ø350 mm, H=195 m
u Seismometer mass	18 kg

Response functions.

1. KS-1 verybroadband seismometer.

2. STS-2 verybroadband seismometer.

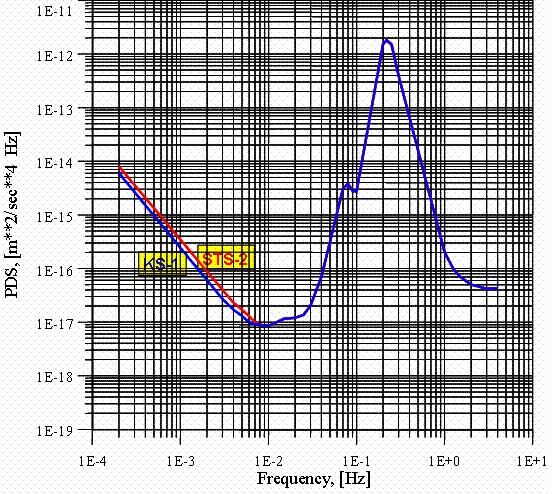

Spectra of seismic noise as recorded by vertical channels of KS-1 and STS-2 seismometers.

The spectrum of earth tides as recorded by the KS-1 three-component superbroadband seismometer installed at the Svitino seismic station. The absence of daily harmonics on the NS component is due to the station's geographic location.
