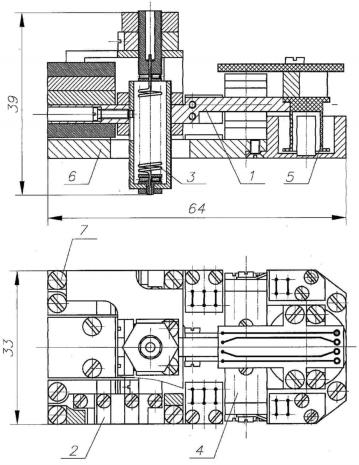

The seismic sensor.

                    1.       Obliquely-oriented pendulum.

                    2.       Bearing.

                    3.       Spring suspension of pendulum.

                    4.       Capacitance transducer.

                    5.       Moving-coil transducer.

                    6.       Foundation.

              7.    Mounting screw for attaching to plate.

<<<<          >>>>
